Key Features
Add-on features (available at additional cost)

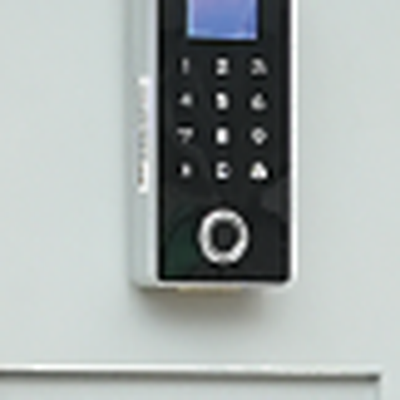

USB data logging and printer GSM/SMS alert system Magnetic or biometric lock integration Voltage stabiliser and generator backup
Gallery
Technical Specifications
Type
Upright / Vertical and Chest Models
Temperature Range
-40°C
Insulation
100-125 mm high density polyurethane foam
Construction
Outer epoxy-coated galvanized steel; Inner SS-304
Refrigeration
High performance system, non-CFC/HCFC refrigerants
Control System
Microprocessor with HMI options (3", 7", 10")
Power Supply
220-240 V, 50 Hz
Monitoring
USB & PC interface, inkless chart recorder (7-day)
Product Models
| Type | Model | Capacity | Exterior Dimensions |
|---|---|---|---|
| Under-Counter | PF-100UC | 100 L | 990 x 900 x 727 mm |
| Vertical | PF-333V | 333 L | 1781 x 737 x 964 mm |
| Vertical | PF-427V | 427 L | 2066 x 737 x 964 mm |
| Vertical | PF-549V | 549 L | 2066 x 867 x 964 mm |
| Vertical | PF-685V | 685 L | 2066 x 1012 x 964 mm |
| Vertical | PF-817V | 817 L | 2066 x 1154 x 964 mm |
| Vertical | PF-953V | 953 L | 2066 x 1299 x 964 mm |
| Chest | PF-465C | 465 L | 1020 x 1535 x 1140 mm |
| Chest | PF-710C | 710 L | — |
Dimensions are site-specific and customisable to requirements.
Request spec sheetEnquire about this product
Get pricing, technical specs, or schedule a call with our engineering team.
Request Quote Contact on WhatsAppApplications
Plasma storage
Blood banks
Hospital transfusion
Pharmaceutical storage
Certifications
ISO 13485CDSCOIEC
