Key Features
Add-on features (available at additional cost)
USB data extraction and event logging Battery backup for alarms Voltage stabiliser Flexible shelving options Magnetic or biometric lock integration
Technical Specifications
Type
Upright Glass-Door Refrigerators
Temperature Range
+2°C to +8°C
Insulation
80 mm PU foam
Construction
Outer epoxy-coated GI; Inner SS-304

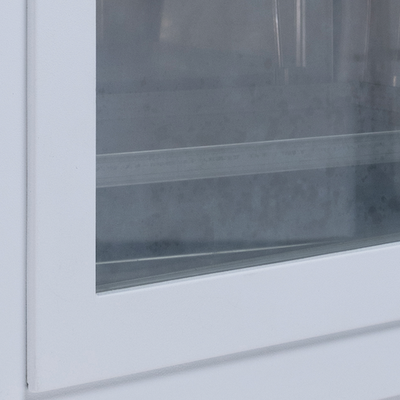

Doors
Triple-pane heated glass, ergonomic lock

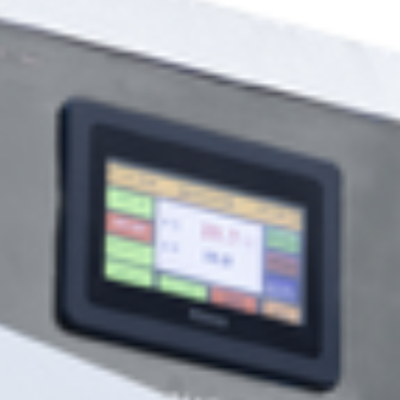

Controls
Microprocessor with HMI

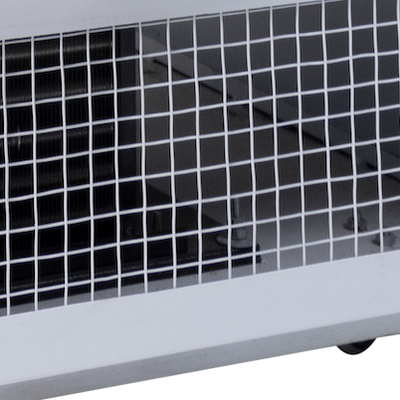

Air Circulation
Forced air system
Monitoring
Chart recorder, alarms, USB logging
Power Supply
220-240 V, 50 Hz
Product Models
| Type | Model | Capacity | Exterior Dimensions |
|---|---|---|---|
| Single Door | BBR-223 | 223 L | 1125 x 760 x 775 mm |
| Single Door | BBR-315 | 315 L | 1377 x 760 x 775 mm |
| Single Door | BBR-402 | 402 L | 1615 x 760 x 775 mm |
| Single Door | BBR-500 | 500 L | 1881 x 760 x 775 mm |
| Single Door | BBR-585 | 585 L | 2115 x 760 x 775 mm |
| Double Door | BBR-905DD | 905 L | 1615 x 1510 x 775 mm |
| Double Door | BBR-1124DD | 1124 L | 1881 x 1510 x 775 mm |
Dimensions are site-specific and customisable to requirements.
Request spec sheetEnquire about this product
Get pricing, technical specs, or schedule a call with our engineering team.
Request Quote Contact on WhatsAppApplications
Blood banks
Hospital blood storage
Transfusion centres
Certifications
ISO 13485CDSCOIEC
