Key Features
Add-on features (available at additional cost)
IoT centralised temperature monitoring (Bluetooth/Wi-Fi/GSM) USB data logger and thermal printer Chart recorder for regulatory compliance Voltage stabiliser and generator backup Battery backup for alarms and control unit
Gallery
Technical Specifications
Temperature Range
+2°C to +8°C (ambient up to 43°C)
Capacity Range
129 L to 1350 L
Insulation
80 mm high-density polyurethane foam with silicon gaskets
Construction
Inner SS 304; Outer epoxy-coated GI or PPGI
Doors
Solid or double-pane glass; self-closing with ergonomic lock
Shelving
Adjustable SS/glass/mesh shelving systems

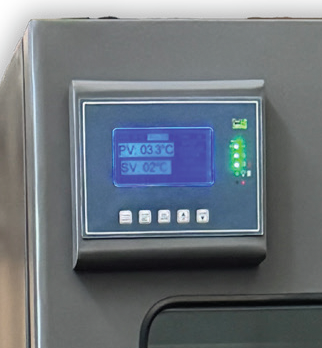

Control System
Microprocessor with 1", 4", or 7" HMI; USB interface
Monitoring
Continuous temperature logging, event logging, optional IoT
Alarms
Audio-visual for temp deviation, door open, probe fault, power failure
Lighting
Internal LED illumination ≥150 lux
Compliance
ISO 13485:2016, CDSCO Class B, IEC 60601-1
Power Supply
220-240 V AC, 50 Hz
Product Models
| Type | Model | Capacity | Exterior Dimensions |
|---|---|---|---|
| Under Counter | LR-129UC | 129 L | 975 x 620 x 575 mm |
| Vertical | LR-223V | 223 L | 1125 x 760 x 765 mm |
| Vertical | LR-315V | 315 L | 1377 x 760 x 765 mm |
| Vertical | LR-402V | 402 L | 1615 x 760 x 765 mm |
| Vertical | LR-500V | 500 L | 1881 x 760 x 765 mm |
| Vertical | LR-585V | 585 L | 2115 x 760 x 765 mm |
| Double Door | LR-905VD | 905 L | 1615 x 1510 x 765 mm |
| Double Door | LR-1124VD | 1124 L | 1881 x 1510 x 765 mm |
| Double Door | LR-1350VD | 1350 L | 2155 x 1510 x 765 mm |
Dimensions are site-specific and customisable to requirements.
Request spec sheetEnquire about this product
Get pricing, technical specs, or schedule a call with our engineering team.
Request Quote Contact on WhatsAppApplications
Pharmacy storage
Vaccine cold chain
Reagent storage
Laboratory
Certifications
ISO 13485CDSCOIEC
